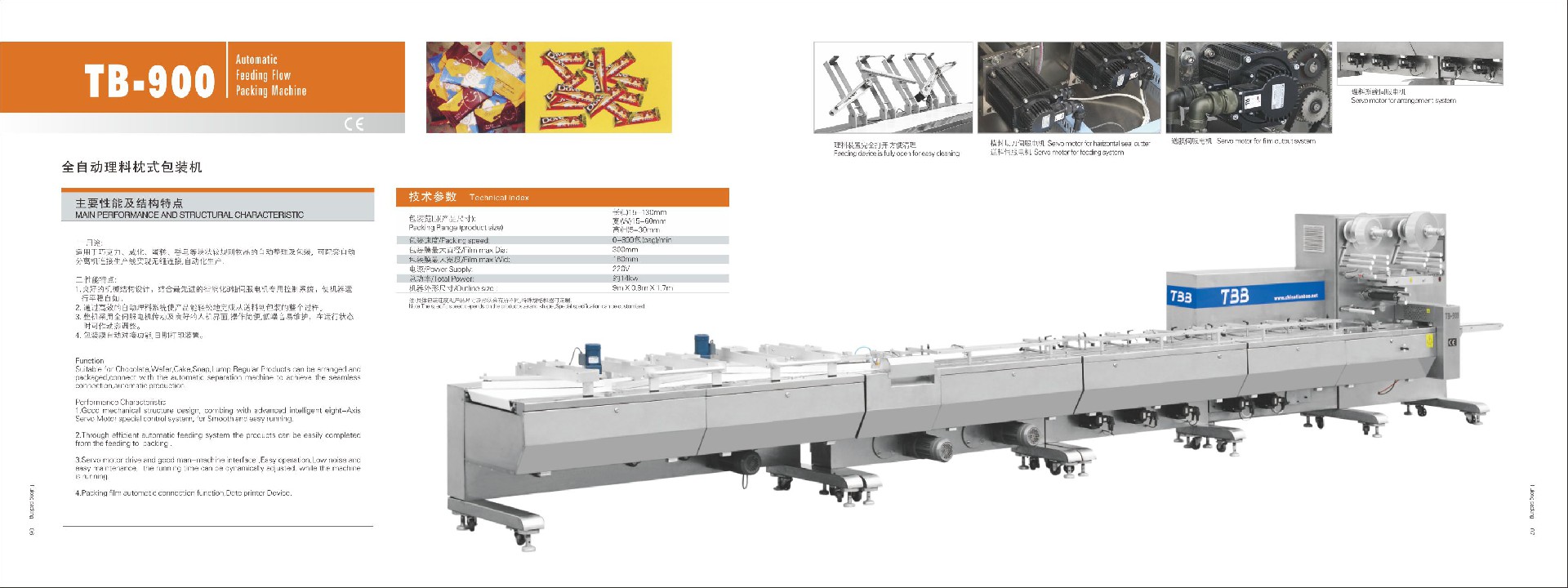

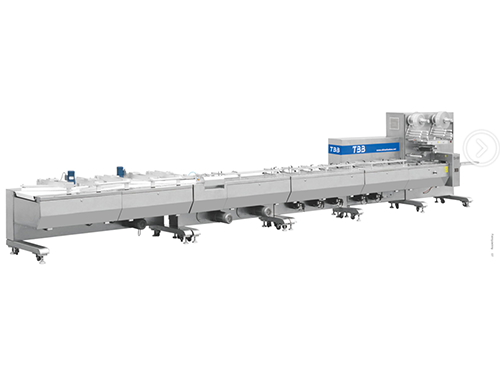

| 全自動理料枕式包裝機 |
主要性能及結構特點 MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC |
一、用途： 適用于巧克力、威化、蛋糕、香皂等 塊狀較規(guī)則物品的自動整理及包裝，可配套自動分離機連線生產線實現無縫連接，自動化生產。
二、性能特點：
Suitable for Chocolate， Wafer， Cake， Soap， Lump Regular Products can be arranged and packaged，connect with the automatic separation machine to achieve the seamless connection，automatic production
Perfomance Characteristic 1.Good mechanical structuer design,combing with advanced intelligent eight-Axis Servo Motor special control system,for Smooth and easy running. 2.Through efficient automatic feeding system the products can be easily completed from the feeding to packing. 3.Servo motor drive and good man-machine interface,Easy operation,Low noise and easy maintenance,the running time can be dynamically adjusted,while teh macghine is running. 4.Packing film automatic connection function,Date printer Device. |
| 技術參數 Technical Index |
包裝范圍（產品尺寸） Packing Range(product size) | 長（L）15-130mm 寬（W）15-60mm 高（H）5-30mm |
| 包裝速度/Packing Range(product size) | 0-800包（bao）/min |
| 包裝膜最大直徑/Film max Dia: | 300mm |
| 包裝膜最大寬度/Film max Wid: | 180mm |
| 電源/Power Supply: | 220V |
| 總功率/Total Power: | 約14kw |
| 機器外形尺寸/Outline size: | 9m×0.9m×1.7m |
