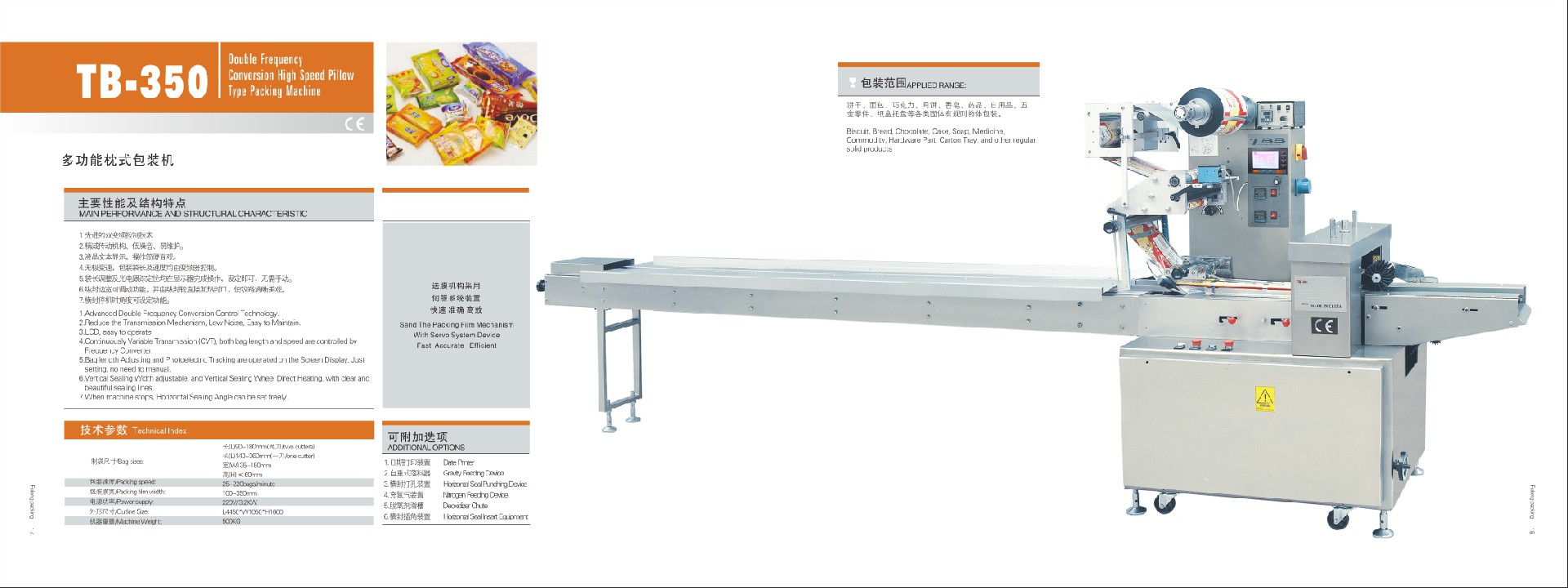

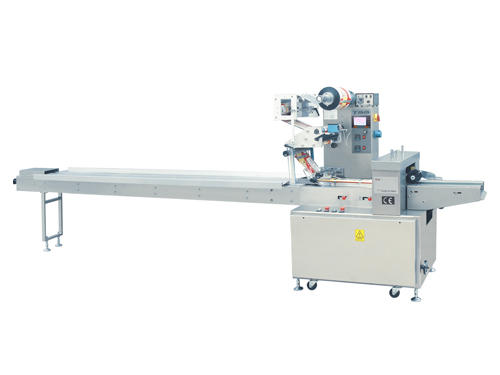

| 多功能枕式包裝機 |
| 主要性能及結構特點 MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC |
1.先進的雙變頻控制技術 2.精減傳動機構、低噪音、易維護。 3.液晶文本顯示，操作簡便直觀。 4.無極變速，包裝袋長及速度均由變頻器控制。 5.袋長調整及光電跟蹤定位均在顯示器完成操作，設定 即可，無需動手。 6.縱封邊寬可調動功能，并由縱封輪直接加熱封口，使 紋路清晰美觀。 7.橫封停機時角度可設定功能。 1.Advanced Double Frequency Conversion Control Technology. 2.Reduce the Transmission Mechanism, Low Noise，Easy to Maintain, 3.LCD, easy to operate 4.Continuously Variable Transmission (CVT), both bag length and speed are controlled by Frequency Converter. 5.Bag length Adjusting and Photoelectric Tracking are operated on the Screen Display. Just setting, no need to manual. 6.Vertical Sealing Wldth adjustable, and Vertical Sealing Wheel Direct Heating. with clear and beautiful sealing lines. 7.When machine stops, Horizontal Sealing Angle can be set freely.
|
送膜機構采用 伺服系統裝置 快速 準確 高效
Send The Packing Film Mechanism With Servo System Device Fast Accurate Effticient |
| 技術參數 Technical Index | 可附加選項 ADDIMTIONAL OPTIONS | |
| 制袋尺寸/Bag sizes： | 長(L)90-180mm(兩刀/two cutters) 長(L)140-360mm(一刀/one cutter) 寬(W) 35-150mm 高(H)≤60mm | 1.期打印裝置 Date Pinter 2.自重式落料器 Gaity Feeding Device 3.橫封打孔裝 Horizontal Seal Punching Devibe 4.充氮氣裝置 Nitrogen Feedng Device 5.脫氧劑滑槽 Deoxidizer Chute 6.橫封插角裝置 Horizontal Seal Inser Equipment |
| 包裝速度/Packing speed: | 25-220bags/minute | |
| 包裝膜寬/Packing film width: | 100-350mm | |
| 電源功率/Pover suppy: | 220V/3.2KW | |
| 外形尺寸/Outline Size： | L4450*W1050*H1600 | |
| 機器重量Machine Weight: | 500KG |
| 包裝范圍APPLIE RANGE |
餅干、面包、巧克力、月餅、香皂、藥品、日用品、五金零件、紙盒托盤等各類固體有規則物體包裝。 Biscuit,Bread, Chocolate, Cake Soap, Medcine,Comodity. Hardware Part, Carton Tray, and other regular solid products |
