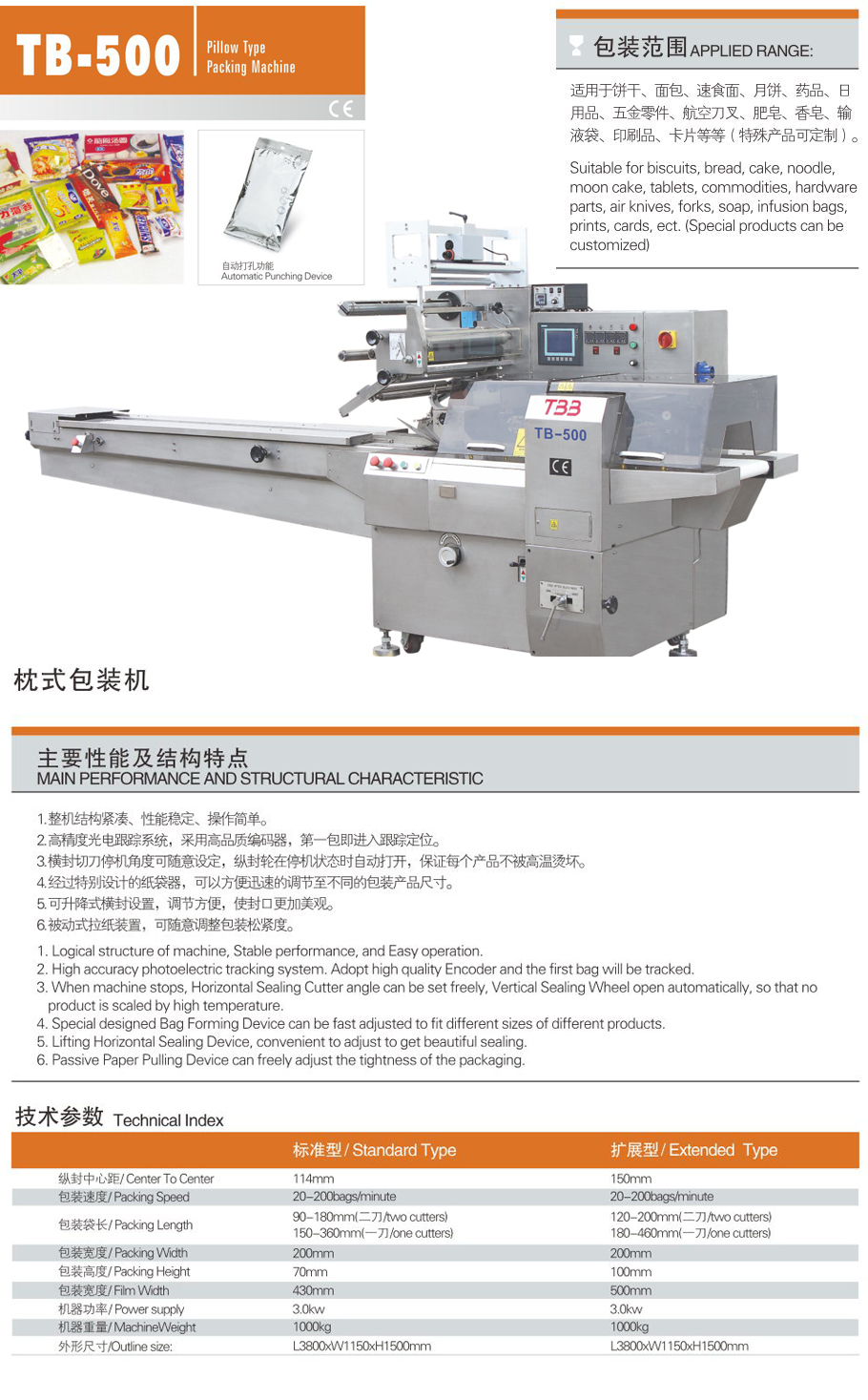

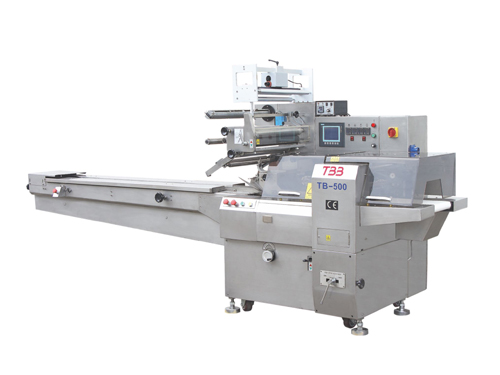

TB-500-枕式包裝機

枕式包裝機

主要性能及結構特點
MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC

整機結構緊湊、性能穩定、操作簡單。
高精度光電跟蹤系統，采用高品質編碼器，第一包即進入跟蹤定位。
橫封切刀停機角度可隨意設定，縱封輪在停機狀態時自動打開，保證每個產品不被高溫燙壞。
經過特別設計的紙袋器，可以方便迅速的調節至不同的包裝產品尺寸。
可升降式橫封設置，調節方便，使封口更加美觀。
被動式拉紙裝置，可隨意調整包裝松緊度。

1.Logical structure of machine, Stable performance, and Easy operation.

2.High accuracy photoelectric tracking system. Adopt high quality Encoder and the first bag will be tracked.

3.When machine stops, Horizontal Sealing Cutter angle can be set freely, Vertical Sealing Wheel open automaticallyso that no

product is scaled by high temperature.

4.Special designed Bag Forming Device can be fast adjusted to fit dfferent sizes of different products.

5.Lifting Horizontal Sealing Device, convenient to adjust to get beautiful sealing.

6. Passive Paper Plling Device can freely adjust the tightness of the packaging.

技術參數 Technical Index

	標準型/Standard Type	擴展型/Extended Type
縱封中心距/ Center To Center	114mm	150mm
包裝速度/Packing Speed	20-200bags/minute	20-200bags/minute
包裝袋長/ Packing Length	90-180mm(二刀(two cutters) 150-360mm(一刀/one cutters)	120-200mm(二刀/wo cuters) 180-460mm(一刀/one cutters)
包裝寬度/ Packing Width 包裝高度/ Packing Height 包裝寬度/ Film Width	200mm 70mm 430mm	200mm 100mm 500mm
機器功率/Power Supply	3.0KW	3.0KW
外形尺寸/Outline Size	L3800xW1150xH1500mm	L3800xW1150xH1500mm
機器重量/Machine Weight	1000KG	1000KG

包裝范圍APPLIED RANGE:

適用于餅干、面包、速食面、月餅、藥品、日用品、五金零件、航空刀叉、肥皂、香皂、輸液袋、印刷品、卡片等等(特殊產品可定制)。

Suitable for biscuits, bread, cake, noodle,moon cake, tablets, commodities, hardware parts, air knives, forks, soap, infusion bags,prints, cards, ect. (Special products can becustomized)
