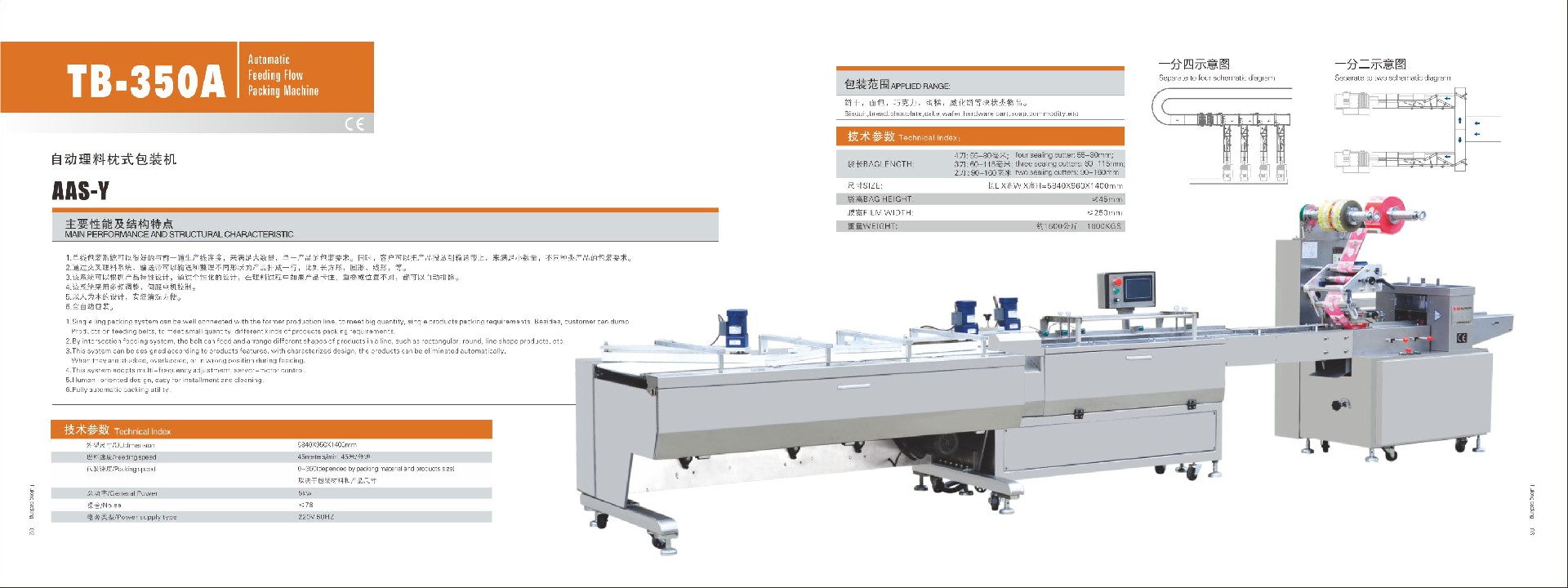

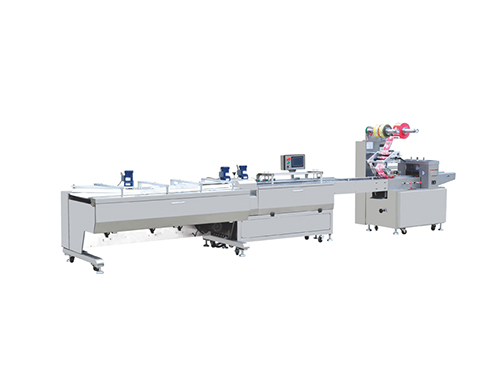

自動理料枕式包裝機 AAS-Y |
主要性能及結構特點 MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC |
1.單線包裝系統可以很好的與前一-道生產線連接，來滿足大數量，單一產品的包裝要求。同時，客戶可以把產品投放到 2.通過交叉理料系統，輸送帶可以輸送和整理不同形狀的產品排成一行，比如長方形，圓形，線形，等。 3.該系統可以根據產品特性設計，通過個性化的設計，在理料過程中如果產品卡住、重疊或位置不對，都可以自動排除。 4.該系統采用多頻調整，伺服電機控制。 5.以人為本的設計，安裝清洗方便。 6.全自動包裝。
1.Single ling packing system can be well connected with the former production line, to meet big quantity, single products packing requirements. Besides. customer can dump. Products on feeding belts, to meet small quantity, different kinds of products packing requirements. 2.By intersection feeding system, the belt can feed and arrange different shapes of products in a line, such as rectangular,round, line shape products, etc. 3.This system can be designed according to products features, with characterized design, the products can be eliminated automatically, When they are stucked, overlapped, or in wrong position during feeding. 4.This system adopts multi- frequency adjustment, servor-motor control. 5.Human-oriented design, easy for installment and cleaning. 6.Fully automatic packing utility. |
| 技術參數 Technical Index | |
| 外型尺寸/Outdimension | 5840X950X1400mm |
| 理料速度/Feeding speed | 45meters/min 45米/分鐘 |
| 包裝速度/Packing speed | 0-350(depended by packing material and products size) 取決于包裝材料和產品尺寸 |
| 總功率/General Power | 5kw |
| 噪音/Noise | ≤78 |
| 電源類型/Power supply type | 220V 50HZ |
| 袋長BAGLENGTH: | 4刀:55- 80毫米; four sealing cutter: 55 -80mm 3刀: 60-115毫米; three sealing cutters: 60-115mm 2刀: 90- 160毫米two sealing cutters: 90- 160mm |
| 尺寸SIZE: | 長L X寬W X高H=5840X960X1400mm |
袋高BAG HEIGHT： 膜寬FILM WIDTH: | ≤45mm ≤250mm |
| 重量WEIGHT: | 約1600公斤 1600KGS |
| 包裝范圍APPLIED RANGE: |
餅干，面包，巧克力，蛋糕，威化餅等塊狀類物品。 Biscuit,bread,chocolate.cake,wafer,hardware part,soap.commodity,etc |
