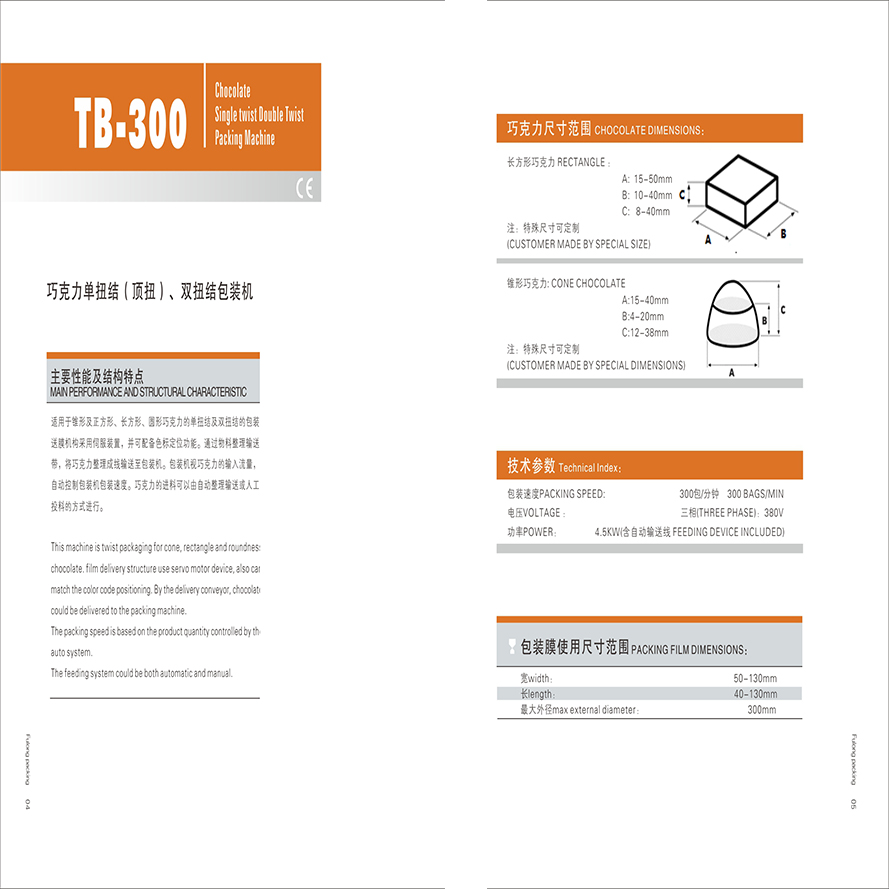

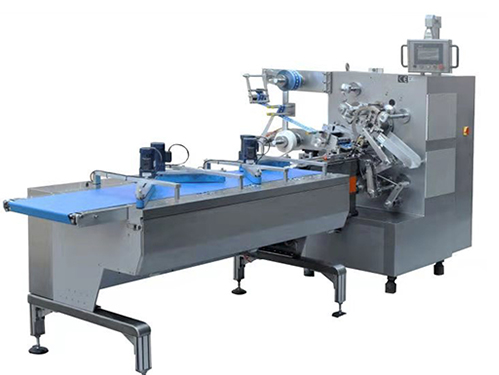

| 巧克力單扭結(頂扭)、雙扭結包裝機 |
主要性能及結構特點 MAIN PERFORMANCE AND STRUCTURAL CHARACTERISTIC |
適用于錐形及正方形、長方形、圓形巧克力的單扭結及雙扭結的包裝。 送膜機構采用伺服裝置，并可配備色標定位功能。通過物料整理輸送帶， 將巧克力整理成線輸送至包裝機。包裝機視巧克力的輸入流量，自動控制 包裝機包裝速度。巧克力的進料可以由自動整理輸送或人工投料的方式進行。
This machine is twist packaging for cone， rectangle and roundness chocolate.film delivery structure use servo motor device，also can match the color code positioning.By the delivery conveyor，chocolate could be delivered to the packing machine. The packing speed is based on the product quantity controlled by the auto system. The feeding system could be both automatic and manual. |
| 巧克力尺寸范圍 CHOCOLATE DIMENSIONS： |
長方形巧克力RECTANGLE： A：15-50mm B：10-40mm C：8-40mm 注：特殊尺寸可定制 (CUSTOMER MADE BY SPECIAL SIZE) |
錐形巧克力：CONE CHOCOLATE A：15-40mm B：4-20mm C：12-38mm 注：特殊尺寸可定制 (CUSTOMER MADE BY SPECIAL DIMENSIONS) |
| 技術參數 Technical Index： |
| 包裝速度PACKING SPEED: | 300包/分鐘 300BAGS/MIN |
| 電壓VOLTAGE： | 三相（THREE PHASE）:380V |
| 功率POWER： | 4.5W（含自動輸送線FEEDING DEVICE INCLUDED） |
| 包裝膜使用尺寸范圍 PACKING FILM DIMENSIONS |
| 寬width: | 50-130mm |
| 長length: | 40-130mm |
| 最大外徑max external diameter: | 300mm |
